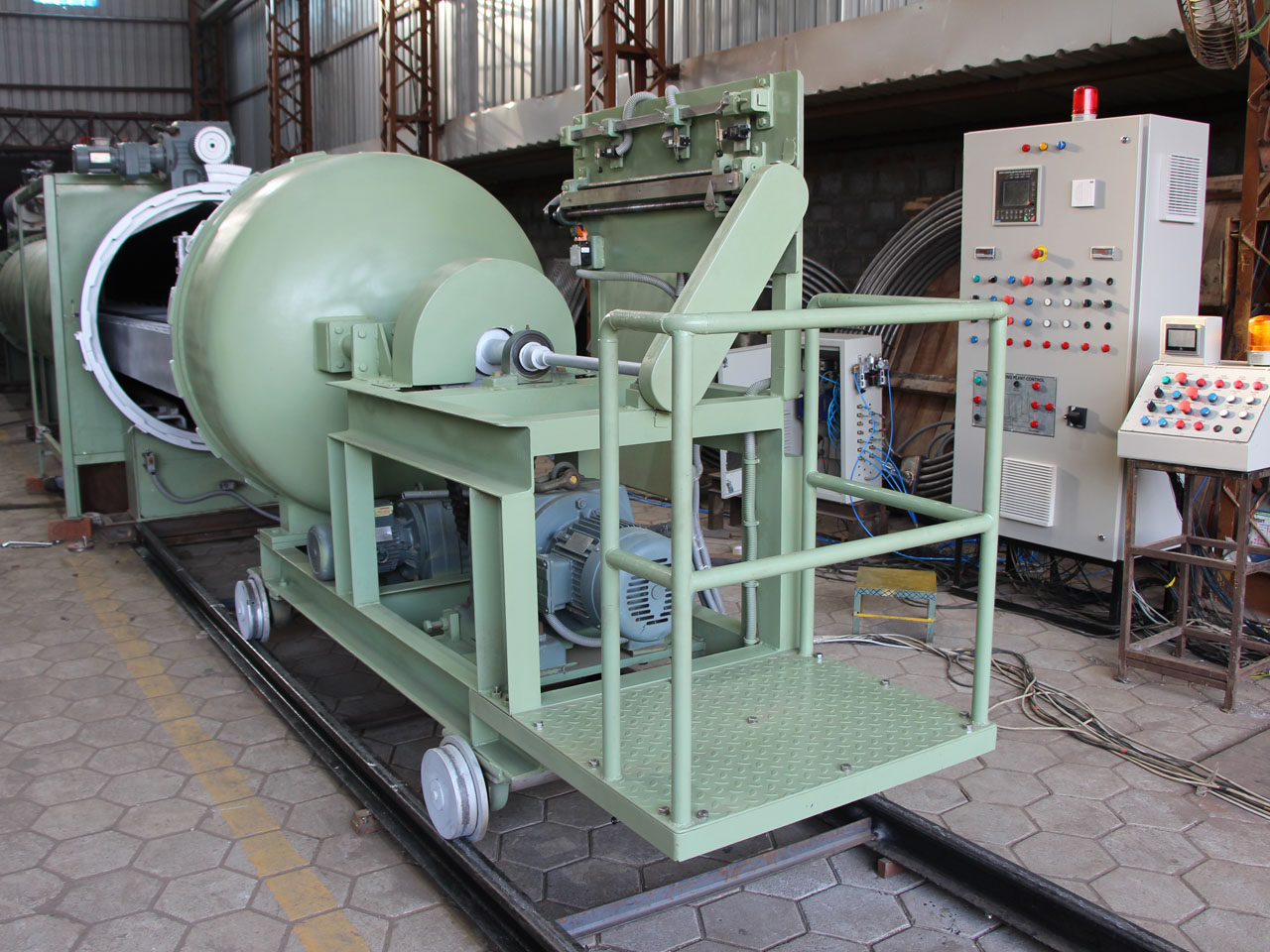

Depth Wise Vacuum Fish Net Stretching Machine
 |
We are a leading manufacturer and exporter of Depth Wise Vacuum Fish Net Stretching Machine. To manufacture this machine, we use optimum quality materials sourced from trusted vendors.These machines are ideal for fishing net manufacturers who are looking to increase productivity and profitability. This machine is easy to adjust, use and maintain. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Machine Type | RK 1000 | RK 1200 | RK 1300 | RK 1500 |
| Net Direction | Depth wise | Depth wise | Depth wise | Depth wise |
| Construction type | Vacuum Vessel | Vacuum Vessel | Vacuum Vessel | Vacuum Vessel |
| Fishing Nets Handling Width | 1000 mm / Customize | 1200 mm / Customize | 1300 mm / Customize | 1500 mm / Customize |
| Heat System | Steam / Customize | Steam / Customize | Steam / Customize | Steam / Customize |
| Extending Capacity(max) | 800 KGS | 1000 KGS | 1200 KGS | 1500 KGS |
| Heat Temperature | 100 to 150°C | 100 to 150°C | 100 to 150°C | 100 to 150°C |
| Extending Speed (m/min) | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 |
| Main Motor Power (KW ) | 3.5 KW | 5 KW | 7.5 KW | 11 KW |
| (L×W×H) Outline size (mm) | 20000x1500x1200 | 20000x1650x1350 | 30000x1800x1500 | 30000x1900x1500 |
